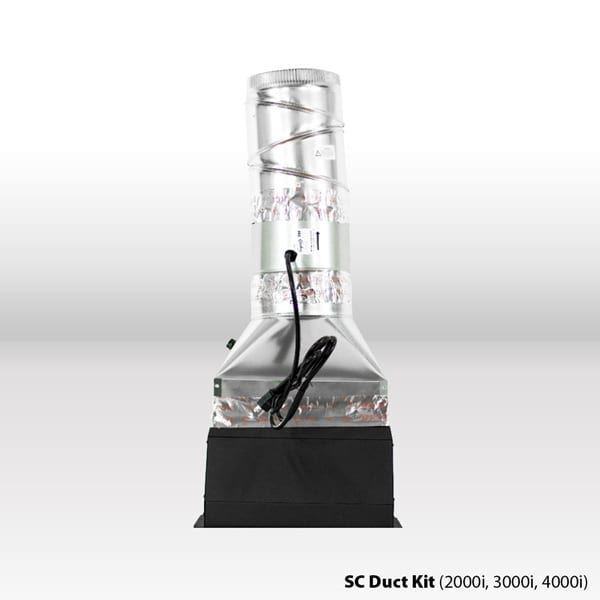

WhisperKOOL SC Small Ducting Kit
Small Flange & Ducting Kit with in-line fan for Models SC PRO 2000, 3000 and 4000.

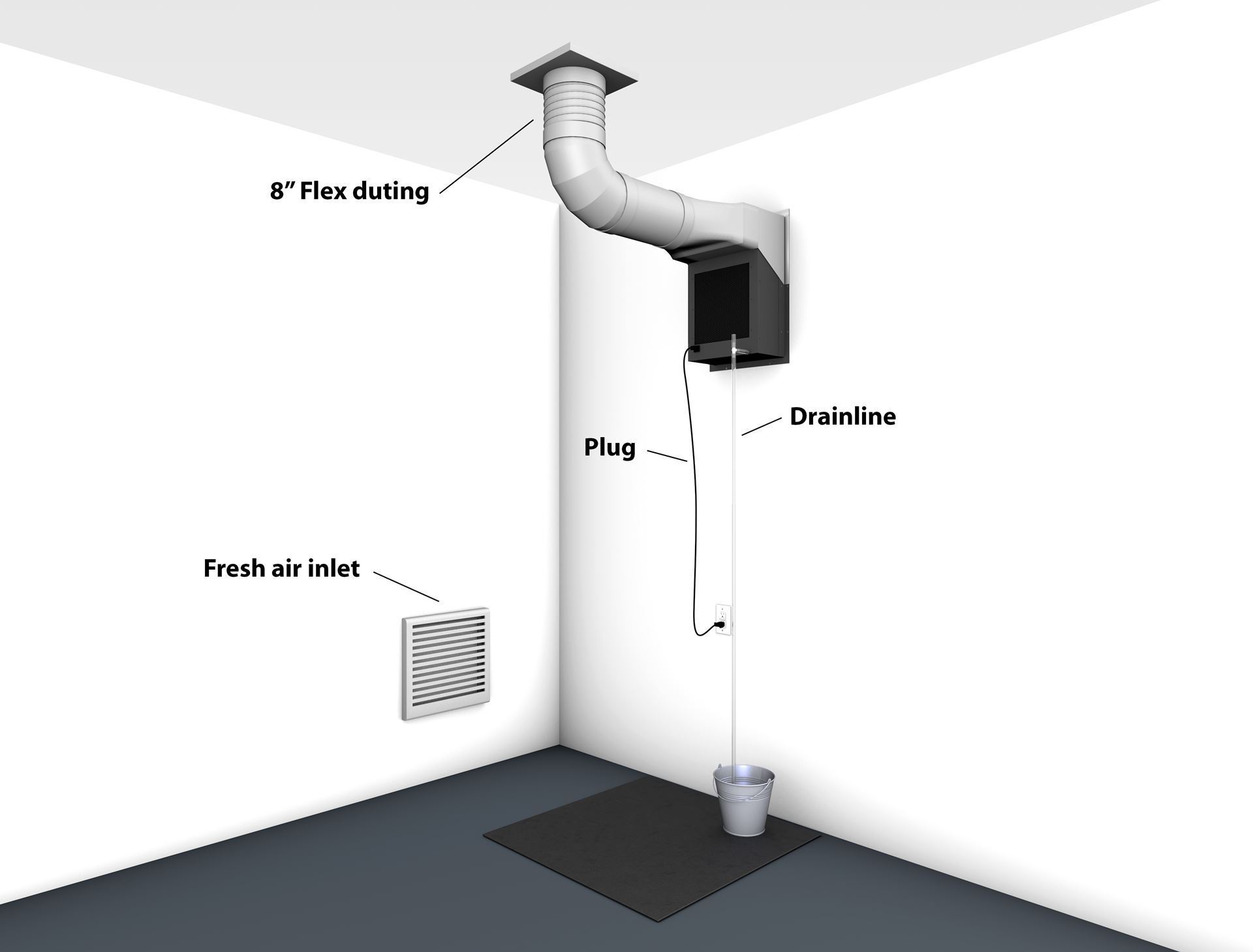

The WhisperKOOL SC PRO Ducting Kit (Small) is an essential accessory designed to relocate unwanted heat from the exhaust side of compatible wine cooling units. It utilizes an automatic, thermostat-controlled in-line fan to push hot air through up to 25 feet of ducting, preventing the cooling unit from overheating in small or poorly ventilated spaces.
Compatible Models
The "Small" kit is specifically designed for the following WhisperKOOL series:
- SC PRO Series: 2000, 3000, and 4000 models.
Key Specifications
- Dimensions: 14”W x 8”H x 36”D
- Weight: 14 lbs.
- Duct Size: Requires 8-inch diameter ducting for both fan intake and exhaust
- Electrical: 110V - 3 amp rating
- Material: 20-gauge embossed galvanized steel cabinet with a hinged access panel for easier servicing
Kit Contents
The complete small ducting kit includes:
- Duct Plenum
- Transition with integrated heat sensor
- 8-inch In-line fan
- 8-inch Adjustable elbow
Performance Benefits
- Reduces Noise: Minimizes operational noise near the cellar by moving exhaust air further away.
- Increases Efficiency: Redirects heat to ensure the condenser has access to cooler air, maintaining stable cellar temperatures and humidity.
- Simplifies Maintenance: Features a hinged access and wind safety latch designed for straightforward on-site assembly and servicing.
