WhisperKOOL Quantum 9000 – Ducted (220V H.E. Condenser) Wine Cellar Cooling System

This fully ducted split system comes in one size, 9000 BTUs. Utilizing 404A refrigerant, Cellar Size: 3000 cu. ft.
SKU: S-WKQS9000-220-FD
Free shipping
$10,805.00

WhisperKOOL® Quantum 9000: The Ultimate Cooling System for High-End Wine Cellars

The WhisperKOOL® Quantum 9000 is a premier, fully ducted split cooling system engineered for superior performance in large-scale residential and commercial wine storage. It is the ideal solution for wine cellars that demand robust cooling capacity, precise control over temperature and humidity, and a truly silent environment.

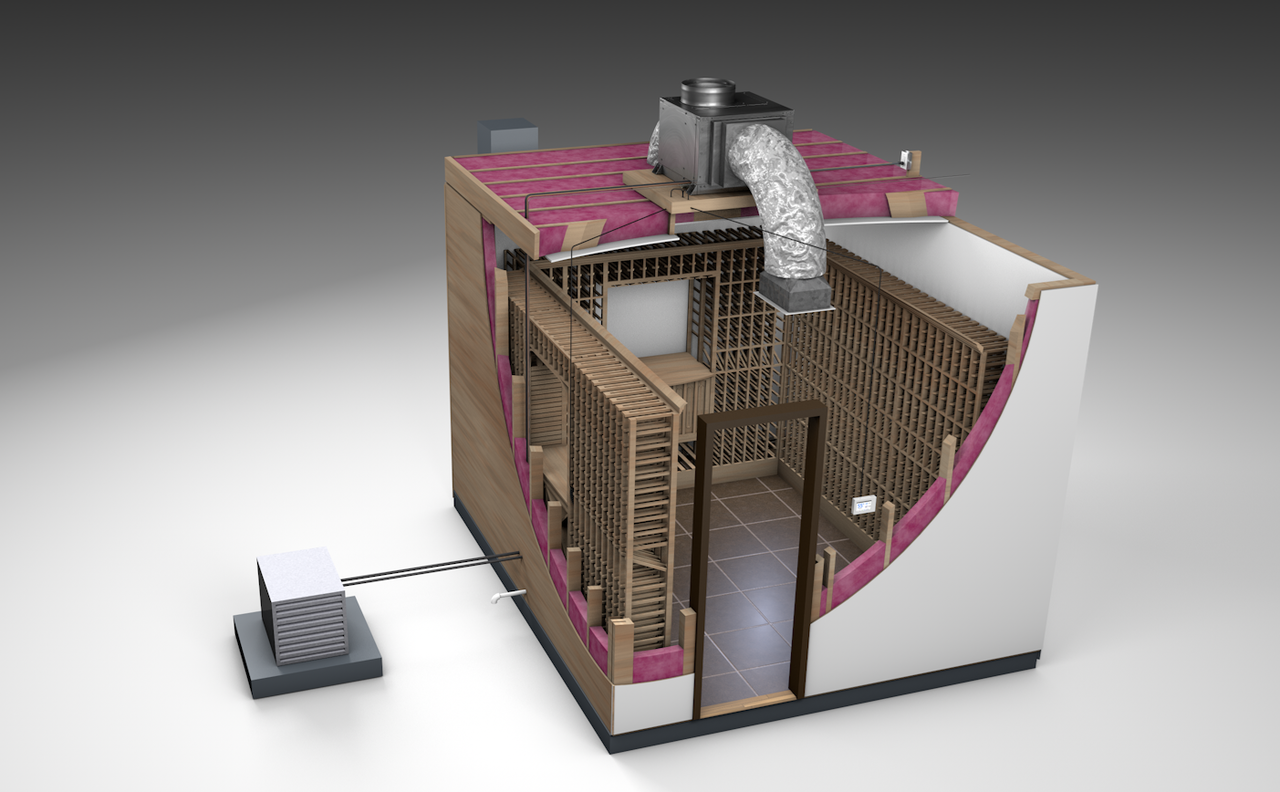

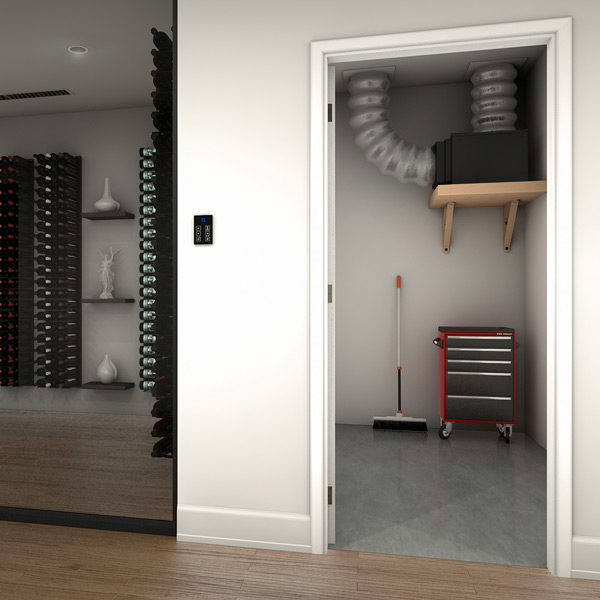

Its flexible design allows for the evaporator and condensing units to be separated by up to 25 feet of ducting. This enables discreet placement of the air handler, ensuring your cellar remains a quiet, undisturbed sanctuary for your collection without any loss in cooling efficiency.


Enhanced Features for Peak Protection and Performance:

  • Premium Durability: Built with professional-grade components and a durable galvanized housing, the Quantum 9000 is designed for long-term reliability.
  • Cold Weather Operation: Engineered to operate effectively in ambient temperatures as low as -15°F.
  • Corrosion Resistance: Electro-fin coated coils provide protection against outgassing that occurs in cellars.
  • Energy Saving Mode: Helps to optimize energy consumption.
  • Airflow Customization: Includes a three-speed fan switch for personalized airflow control and interchangeable evaporator airflow panels.
  • System Protection: Enhanced with a stainless steel drip tray and an optional UV-C lighting system to inhibit microorganism growth.
  • Efficiency Boost: An external insulation blanket is included to improve energy efficiency by reducing heat loss.
  • Pump Down System: Features reliable pump down system technology.
  • Aesthetics: Comes with a sleek black metal kit for an elevated, high-end installation finish.

Product Features:

  • Fully Ducted Spilt System
  • 9000 BTU capacity for larger cellars
  • Interchangeable evaporator airflow panels
  • Pump down system technology
  • Advanced electronic display
  • Liquid bottle probe
  • Energy saving mode
  • Cold weather climates to -15 degrees Fahrenheit
  • Electro-fin coated coils for protection against outgassing that occurs in cellars
  • Condensing unit can be placed outdoors w/optional housing
  • Designed with the highest quality, professional grade parts for longevity and performance
  • Durable galvanized housing
  • 50ft Control & Liquid Bottle Probe
  • 2 year warranty

Specifications

  • Cellar Size: 3000 cu. ft. (Properly Insulated Cellar)

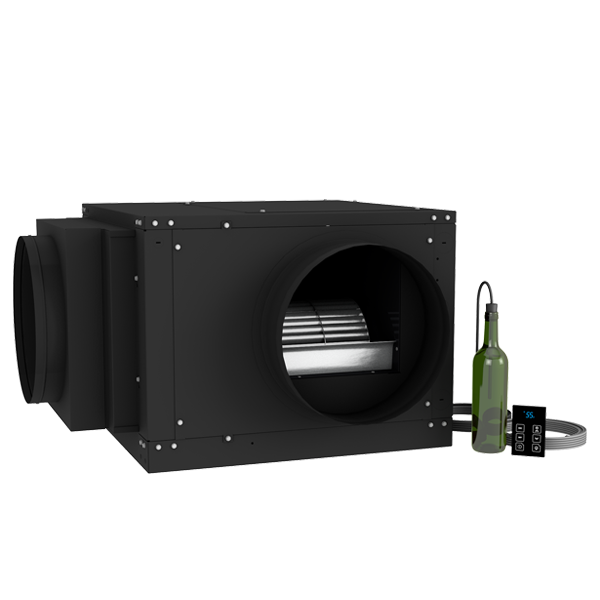

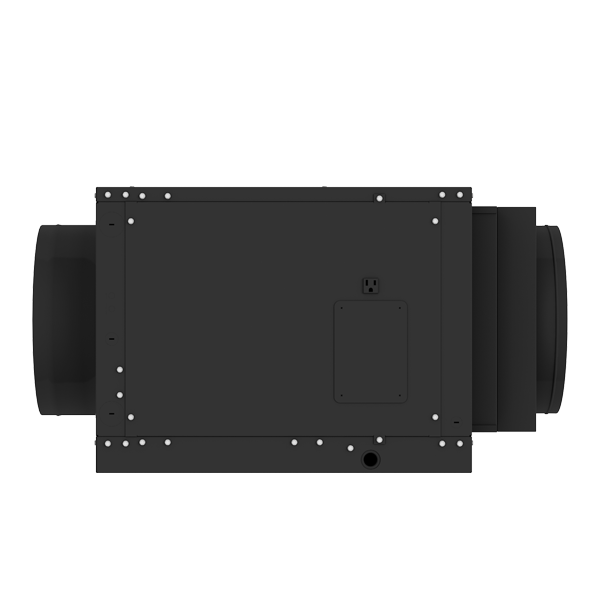

  • Dimensions (Evaporator Unit): 29.5”L x 30.9”W x 19.8”H

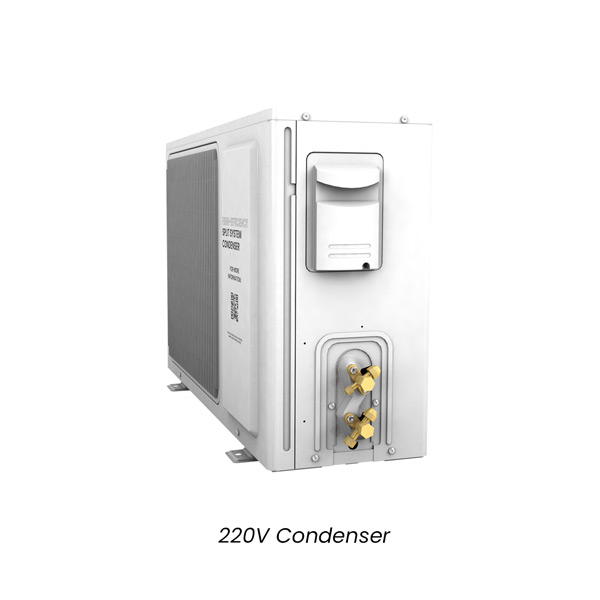

  • Dimensions (Condensing Unit): 24”L x 19.4”W x 16.1”H
  • AMPS (starting/running): Evap : 4.3 / 3.2 Cond: 39.6 / 9.9
  • Installation (Evaporator Unit): Evaporator can be installed up to 25 duct feet away from cellar with 14” flex duct
  • Installation (Condensing Unit): Condensor can be installed up to 100 line feet from Evaporator
  • Temp. Delta: 55°F temperature differential between the cellar temperature and condenser air intake temperature.
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor
