WhisperKOOL Quantum 12000 – Ducted (220V H.E. Condenser) Wine Cellar Cooling System

This fully ducted split system comes in one size, 12000 BTUs. Utilizing 404A refrigerant, Cellar Size: 4,000 cu. ft.
SKU: S-WKQS12000-220-FD
Free shipping
$11,455.00

WhisperKOOL® Quantum 12000: Engineered for Extreme Capacity and Quiet Performance

The WhisperKOOL® Quantum 12000 is the pinnacle of the Quantum Series, a fully ducted split system designed for the largest and most challenging high-end residential and commercial wine cellars. It delivers superior cooling power and precise climate control—including temperature and humidity—with the commitment to virtually silent operation.

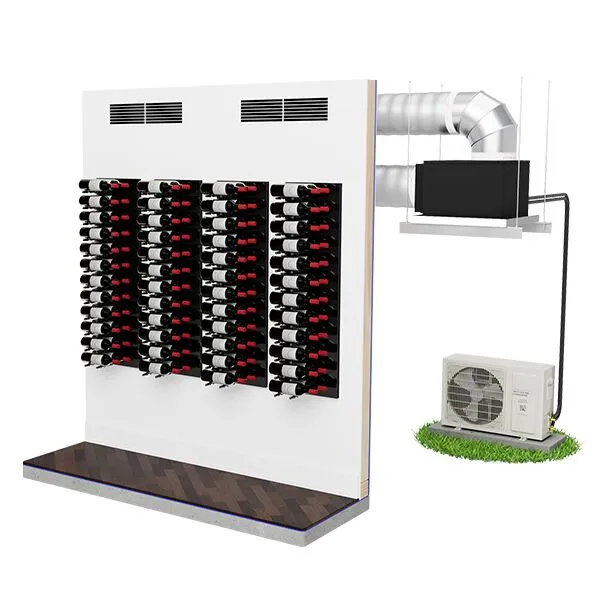

This robust system is engineered with multiple flexible ducting options, allowing the air handler to be installed discreetly up to 25 feet from the condensing unit. This ensures a quiet cellar environment without compromising its cooling efficiency or professional performance.

The Quantum 12000 is built for durability and reliability in any climate, designed to operate effectively in ambient temperatures as low as -15°F. Crafted with the highest quality, professional-grade parts, this unit ensures long-term protection for your most valuable wine collection.

Core Features of the Quantum 12000:

  • Superior Cooling Capacity: Designed to handle larger and more demanding wine cellars, providing that extra boost of cooling power.
  • Split System Design: Ensures virtually silent operation within the cellar environment.
  • Flexible Installation: Multiple ducting options, with the air handler ducted up to 25 feet.
  • Extreme Climate Operation: Capable of operating in cold weather conditions down to -15°F.
  • Corrosion Protection: The evaporator coil is coated with electro-fin coating to minimize corrosion from outgassing.
  • Reliable Technology: Includes a pump down system and energy saving mode for efficient operation.
  • Customizable Airflow: Features interchangeable evaporator airflow panels.
  • Durable Housing: Constructed with durable galvanized housing for longevity.

Product Features:

  • Fully Ducted Spilt System
  • 12000 BTU capacity for larger cellars
  • Interchangeable evaporator airflow panels
  • Pump down system technology
  • Advanced electronic display
  • Liquid bottle probe
  • Energy saving mode
  • Cold weather climates to -15 degrees Fahrenheit
  • Electro-fin coated coils for protection against outgassing that occurs in cellars
  • Condensing unit can be placed outdoors w/optional housing
  • Designed with the highest quality, professional grade parts for longevity and performance
  • Durable galvanized housing
  • 50ft Control & Liquid Bottle Probe
  • 2 year warranty

Specifications

  • Cellar Size: 4,000 cu. ft. (Properly Insulated Cellar)
  • Dimensions (Evaporator Unit): 29.5”L x 30.9”W x 19.8”H

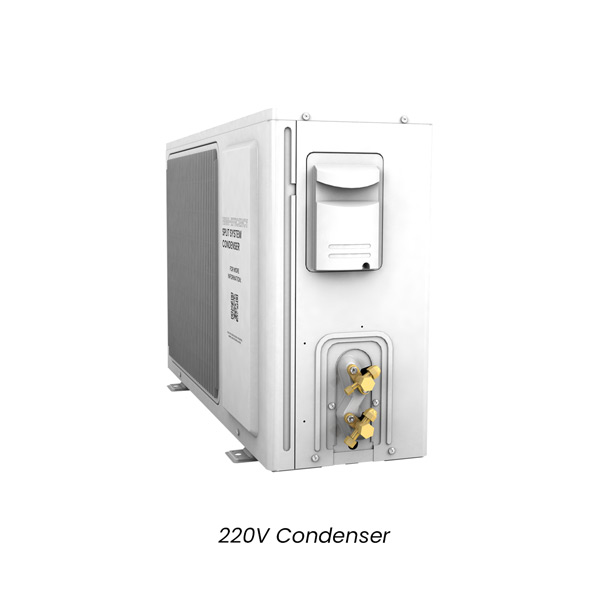

  • Dimensions (Condensing Unit): 24”L x 19.4”W x 16.1”H
  • AMPS (starting/running): Evap : 4.3 / 3.2 Cond: 39.6 / 9.9
  • Installation (Evaporator Unit): Evaporator can be installed up to 25 duct feet away from cellar with 14” flex duct
  • Installation (Condensing Unit):
  • Condensor can be installed up to 100 line feet from Evaporator
  • Temp. Delta: 55°F temperature differential between the cellar temperature and condenser air intake temperature.
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor
