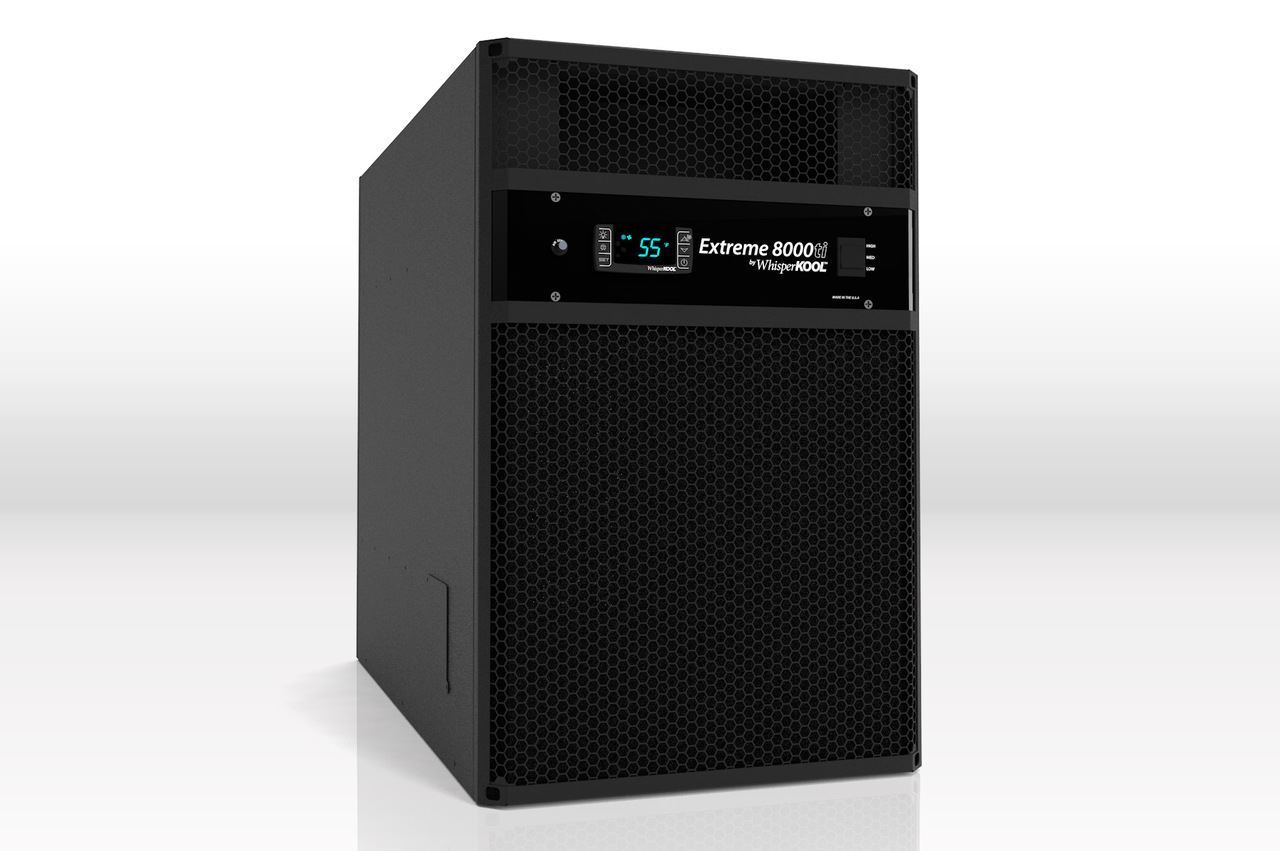

Extreme 8000ti– Through-the-Wall, WhisperKool
The Extreme 8000ti is a self-contained, through-wall cooling system designed for wine cellars up to 2,000 cu. ft. It features variable-speed fans and is engineered for reliable performance even under extreme outdoor conditions. With a 55°F temperature differential, this unit fits neatly between standard wall studs for a quick and simple installation.

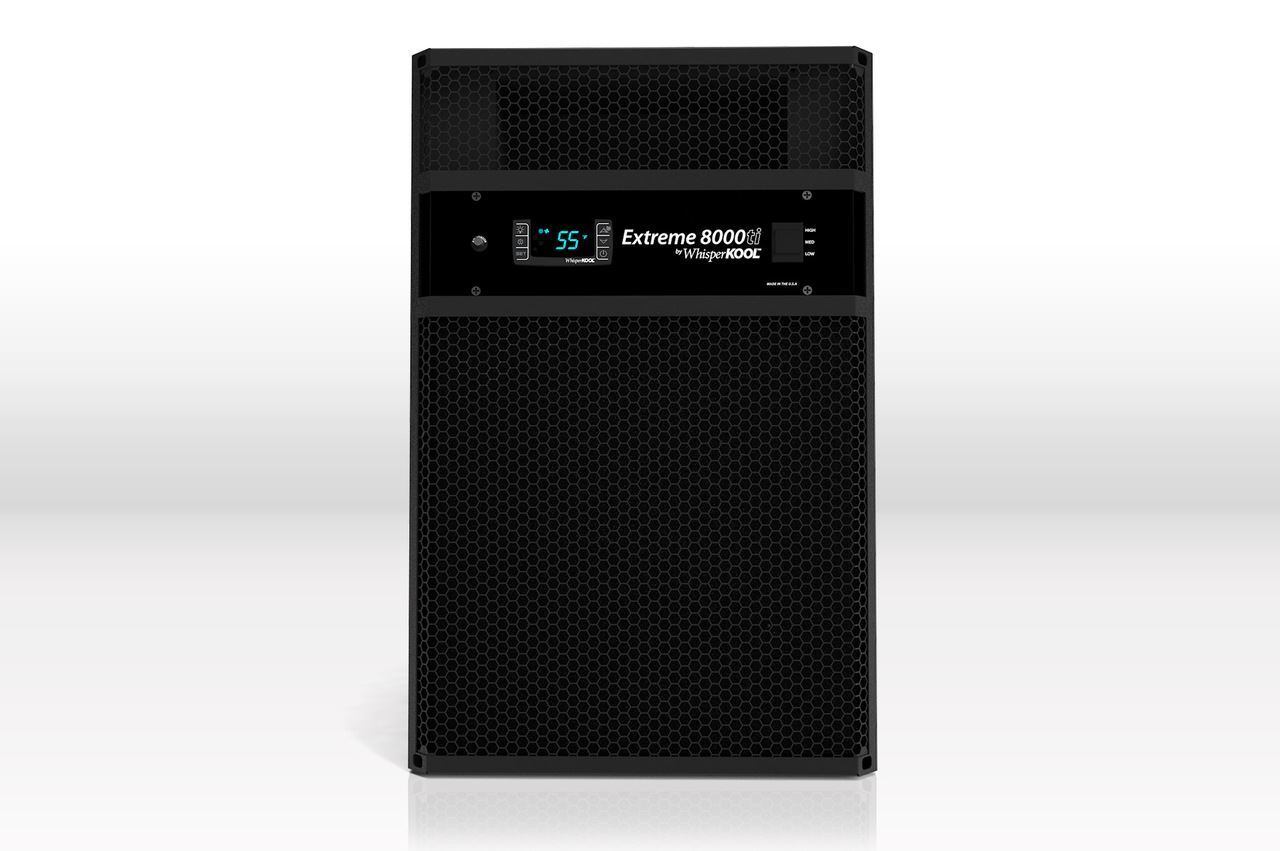

The WhisperKOOL Extreme ti 8000 is a high-performance, self-contained cooling system designed for through-the-wall installation in small to mid-sized wine cellars. It features a front-facing digital controller for straightforward climate management and is engineered for quiet, reliable operation.
Installation and Configuration:
- Mounting: The unit can be wall-mounted directly or installed as a ducted system.
- Ducting: If you choose to duct the system, a Remote Thermostat Panel must be purchased at the same time as the cooling unit. Please note that ductwork should not exceed 25 feet per run or 50 combined feet for supply and return.
- Exterior/Interior Protection: For outdoor installations, an exterior housing or grille is strongly recommended. For interior installations, a Condenser Ducting Plenum Kit is available to redirect exhaust air.
Technical Specifications:
- Dimensions: 14.25"W x 22"H x 27.5"D
- Capacity: Up to 2000 cu. ft. (5760 BTU/h)
- Temperature Range: Operates in ambient temperatures from 32°F to 110°F.
- Electrical: 115V (requires a 20-amp dedicated circuit) or 230V (subject to availability).
- Duct Size: 10” Return and 8” Supply.
This system is an ideal solution for collectors seeking dependable cooling without compromising cellar aesthetics. Please let me know if you have any questions regarding these specifications or installation options.
Specifications
Cellar Size: Approx. 2000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements)
- BTU/h w/85°F air entering condenser coil: 5760
- Dimensions: 28"L x 14.25"W x 22.5"H
- Refrigerant: R-134a
- HP: 1/3+
- Refrigeration Tons: 0.51
- Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
- Weight: 115 lbs
- Amps: 9 (running amps)
- Drain Line: 1/2” ID clear plastic tubing

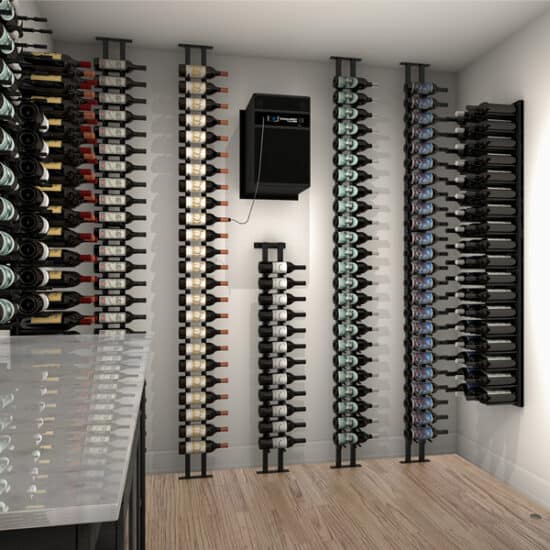

- Installation: Through the wall

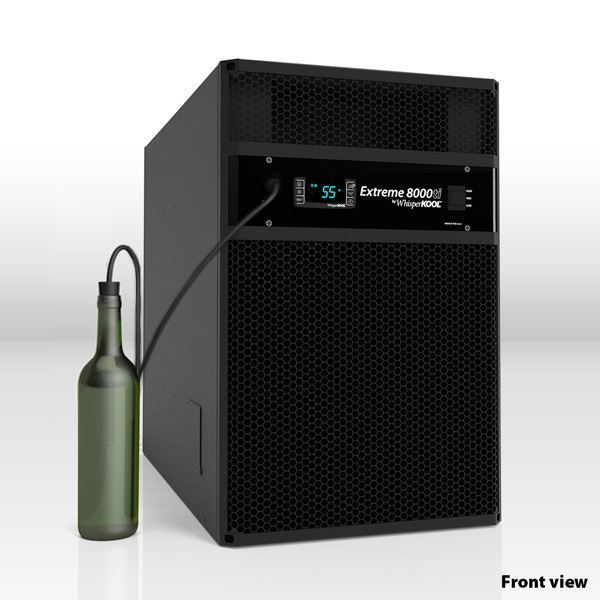

- Thermostat: Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
- Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
