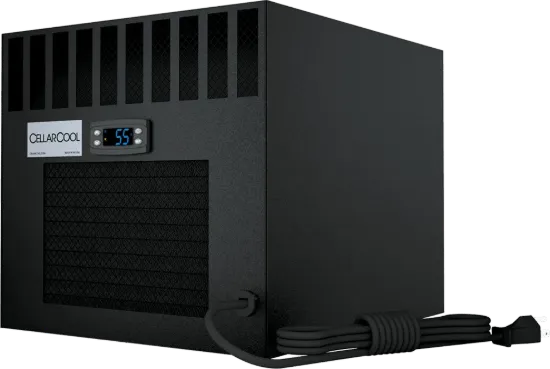

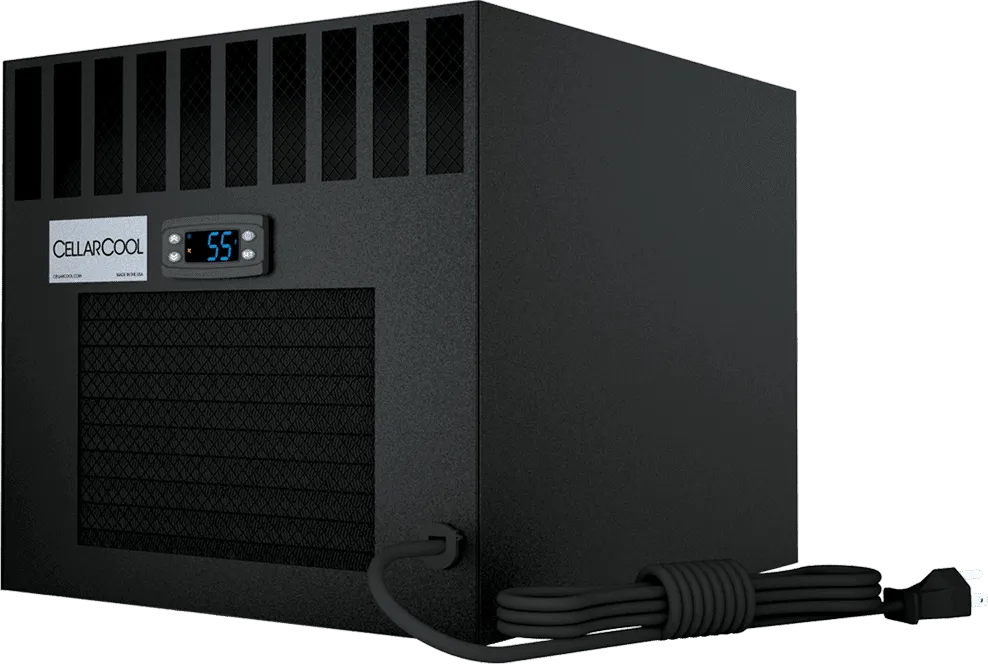

CellarCool CX4400 Through-the-wall Wine Cellar Cooling System

The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar, "best-in-class” 30 degree temperature variance, and the digital controller with system safety management and anti-frost features.

Free shipping

Cord *

U-WKCX4400-115-FC-2 Front Cord
U-WKCX4400-115-RC-2 Rear Cord

$2,489.00

Qty:

Description:

Through the Wall Wine Cellar Cooling Unit. Designed for cooling up to 1000 cu. ft.

The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar,“best-in-class” 30 degaree temperature variance, and the digital controller with system safety management and anti-frost features. Furthermore, these units are a direct replacement for the Breezaire and Wine Mate Thru-Wall units.

Features:

Dimensions: 21.63" D x 14.25" W x 19.75" H
Weight (lbs): 81
AMPS (running): 9
3/8" condensate drain line required

Please note the CX4400 comes with the drain line in the rear of the unit. It will be visible from the adjacent room.

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

Made in the USA
Dynamic Airflow
30°F Temperature Variance - *Best-in-class*
Digital Controller with SSM (System Safety Management) and Anti-Frost
Through-the-Wall Installation with mounting brackets
Heat Exchange Condensate Management System
Power cord located inside or outside the wine cellar - please specify what's needed.
Provides precise measurement of air temperature
Drain line is positioned on warm side of wine cellar
Vibration-Free Operation
Low Maintenance

Specifications:

- Cellar Size (cu ft): 300 (2200) | 650 (3300) | 1000 (4400)
- BTUh (at 85°F): 1453 (2200) | 2049 (3300) | 2253 (4400)
- Dimensions:
- CX2200: 16.38"D x 14.25"W x 13.25"H
- CX3300/CX4400: 21.63"D x 14.25"W x 19.75"H
- Amps (Running): 4.5 (2200) | 4.9 (3300) | 9 (4400)
- Horsepower: 1/8 (2200) | 1/6 (3300) | 1/6+ (4400)
- Voltage: 115V (20 amp dedicated circuit required)
- Refrigerant: R-134a
- Weight: 65 lbs
- Drainline: 1/2” ID clear plastic tubing
- Installation: Through-the-Wall or Partially Ducted
- Thermostat: Advanced digital display with liquid-temperature-measuring bottle probe
- Temperature Delta: Maintains 55°F cellar temperature with up to 85°F condenser air intake
- Ducting: Exhaust air can be ducted using the optional ducting kit
