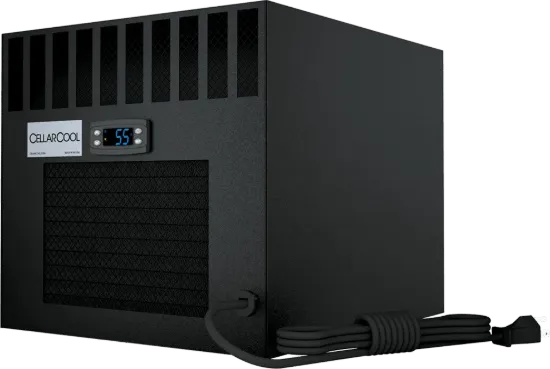

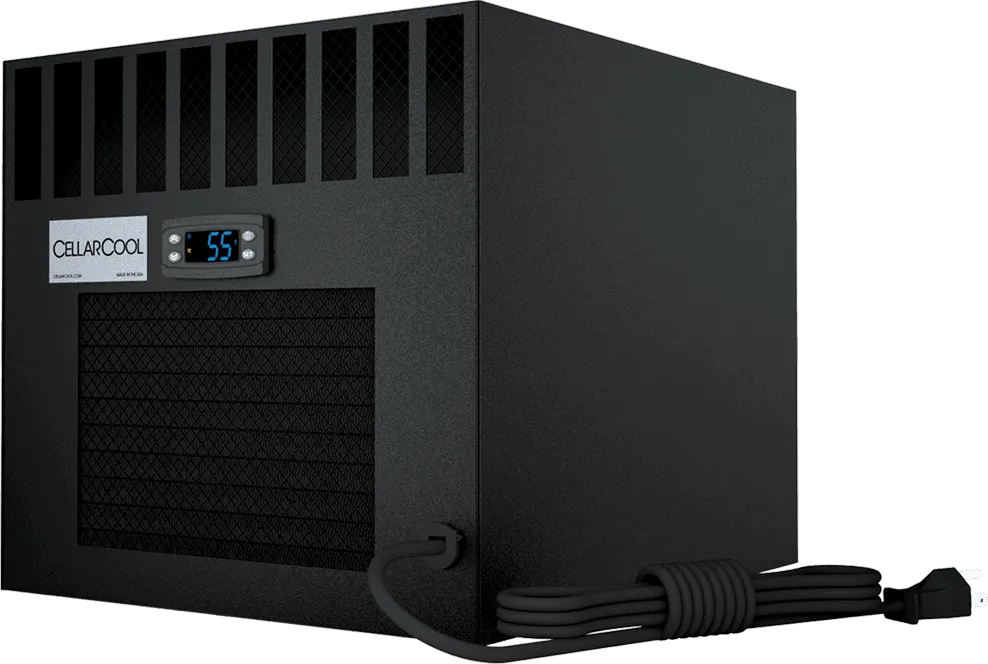

CellarCool CX3300 Through-the-Wall Wine Cellar Cooling System

Description:

Through the Wall Wine Cellar Cooling Unit. Designed for cooling up to 650 cu. ft.

The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar,“best-in-class” 30 degaree temperature variance, and the digital controller with system safety management and anti-frost features. Furthermore, these units are a direct replacement for the Breezaire and Wine Mate Thru-Wall units.

Features:

• Dimensions: 21.63" D x 14.25" W x 19.75" H
• Weight (lbs): 65
• AMPS (running): 4.9
• 3/8" condensate drain line required

Please note the CX3300 comes with the drain line in the rear of the unit.  It will be visible from the adjacent room.

Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

• Made in the USA
• Dynamic Airflow
• 30°F Temperature Variance - *Best-in-class*
• Digital Controller with SSM (System Safety Management) and Anti-Frost
• Through-the-Wall Installation with mounting brackets
• Heat Exchange Condensate Management System
• Power cord located inside or outside the wine cellar - please specify what's needed.
• Provides precise measurement of air temperature
• Drain line is positioned on warm side of wine cellar
• Vibration-Free Operation
• Low Maintenance

• - Cellar Size (cu ft): 300 (2200), 650 (3300), 1000 (4400)
• - BTUh (at 85°F): 1453 (2200), 2049 (3300), 2253 (4400)
• - Dimensions:
• - CX2200: 16.38"D x 14.25"W x 13.25"H
• - CX3300/CX4400: 21.63"D x 14.25"W x 19.75"H
• - Refrigerant: R-134a
• - Horsepower: 1/8 (2200), 1/6 (3300), 1/6+ (4400)
• - Voltage: 115V (20 amp dedicated circuit required)
• - Running Amps: 4.5 (2200), 4.9 (3300), 9 (4400)
• - Weight: 65 lbs
• - Drainline: 1/2” ID clear plastic tubing
• - Installation: Through-the-Wall or Partially Ducted
• - Thermostat: Advanced digital display with liquid-temperature-measuring bottle probe
• - Temperature Delta: Maintains 55°F cellar temp with up to 85°F intake
• ​- Ducting: Exhaust air can be ducted using an optional kit​
