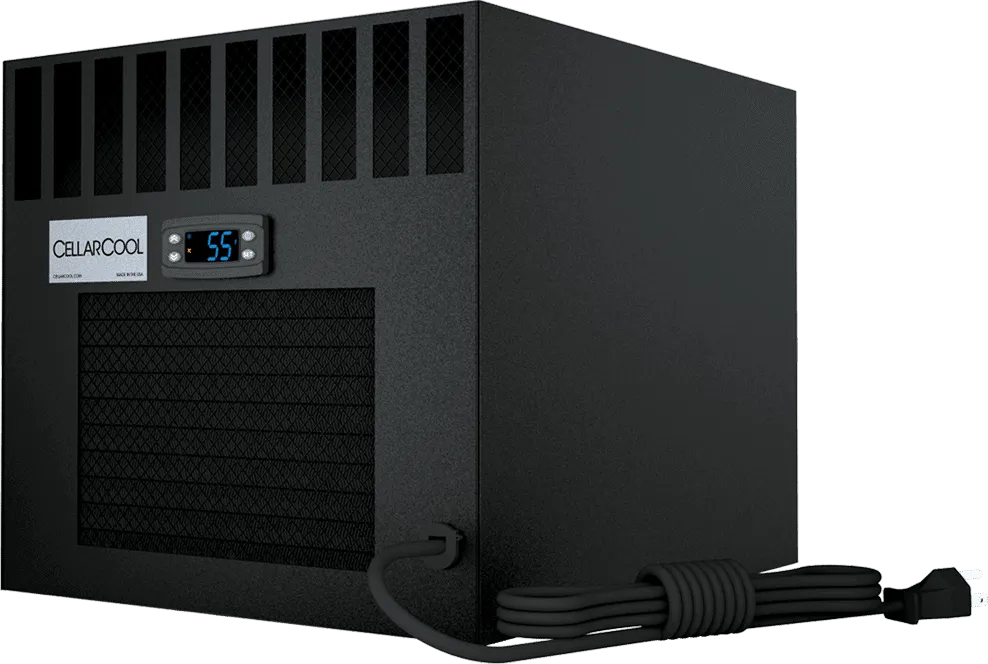

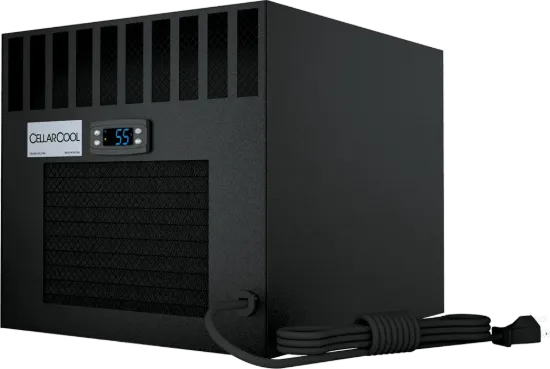

CellarCool CX2200 Through-the-wall Wine Cellar Cooling System
The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar, "best-in-class” 30 degree temperature variance, and the digital controller with system safety management and anti-frost features.
Product Overview
The CX Standard Thru-Wall System is designed for high-performance wine cellar cooling, offering dynamic airflow for superior circulation and a best-in-class 30°F temperature variance. These units feature a digital controller with System Safety Management (SSM) and anti-frost protection. They serve as a direct replacement for Breezaire and Wine Mate Thru-Wall units.
Key Features
- Made in the USA: High-quality construction with vibration-free operation.
- Advanced Control: Digital display with a liquid-temperature-measuring bottle probe and retractable cable.
- Efficient Management: Heat exchange condensate management system and low-maintenance design.
- Flexible Installation: Through-the-wall mounting with optional ducting kits for exhaust air.
- Customizable Power: Power cord can be located inside or outside the cellar (please specify preference).
Specifications by Model
- CX2200: Covers up to 300 cu. ft. | 1453 BTUh | 16.38"D x 14.25"W x 13.25"H | 4.5 AMPS
- CX3300: Covers up to 650 cu. ft. | 2049 BTUh | 21.63"D x 14.25"75"H | 4.9 AMPS
- CX4400: Covers up to 1000 cu. ft. | 2253 BTUh | 21.63"D x 14.25"W x 19.75"H | 9 AMPSW x 19.
Technical Notes
- Voltage: 115V (20 amp dedicated circuit required).
- Refrigerant: R-134a.
- Drain Line: A 1/2” ID clear plastic tubing drain line is required. On the CX2200, the drain line is located at the rear and will be visible from the adjacent room.
- Thermal Load: While units are rated by room size, factors such as glass walls and room positioning may require a larger unit. We recommend consulting with a Rosehill Wine Cellar representative to ensure the correct fit for your specific thermal load.
